Molasses
Viscous final and intermediate molasses duties, engineered around temperature, Brix, elevation and pipe losses.
Explore the solution
SINOSEN / PNEUMATIC LIQUID TRANSFER
Gear & rotary pump
alternatives.
Considering a gear pump or rotary lobe pump replacement? Explore SINOSEN pneumatic vessel-transfer systems for molasses, syrup and other suitable viscous liquids. We assess your process before recommending a retrofit.
GENERATION 5 · SIEMENS CONTROL · MODULAR DELIVERY
Discover the systemGeneration 5 system visualization
2015SINOSEN established
100+Systems in supplied project experience
05Generation of system development
A + BAlternating pressure-vessel operation
ENGINEERING BEYOND THE PUMP
Rethink the pump.
Improve the whole process.
When seal leakage and repeated pump servicing disrupt a viscous-liquid process, a pressure-vessel system offers a different approach. SINOSEN integrates the equipment and operating logic into one engineered package.
No rotating pumping element
Compressed air provides the driving force. The transfer vessel has no rotating pumping element or mechanical shaft seal.
A coordinated dual-vessel cycle
One vessel fills while the other transfers. Coordinated switching supports continuous upstream feeding within the engineered duty.
One integrated skid
Vessels, valves, instruments, pipework and control cabinet arrive assembled on a common frame for the agreed skid package.
ONE PLATFORM. MANY PROCESS DUTIES.
Find your transfer solution.
Start with the material, the production environment or the system configuration.
Sugar syrup
Raw, clarified and refined sugar syrups, with coordinated tank-to-tank transfer and defined hygienic requirements.
Explore the solution
Sugar magma
Crystal-bearing sugar magma, with attention to valve passages, crystal condition and the complete transfer route.
Explore the solution
Chocolate syrup
Chocolate syrup duties reviewed for temperature control, rheology, product aeration and hygienic cleaning.
Explore the solutionFood ingredients
Selected sauces, glucose syrups and liquid ingredients, assessed for air contact, foaming, allergens and cleaning.
Explore the solution

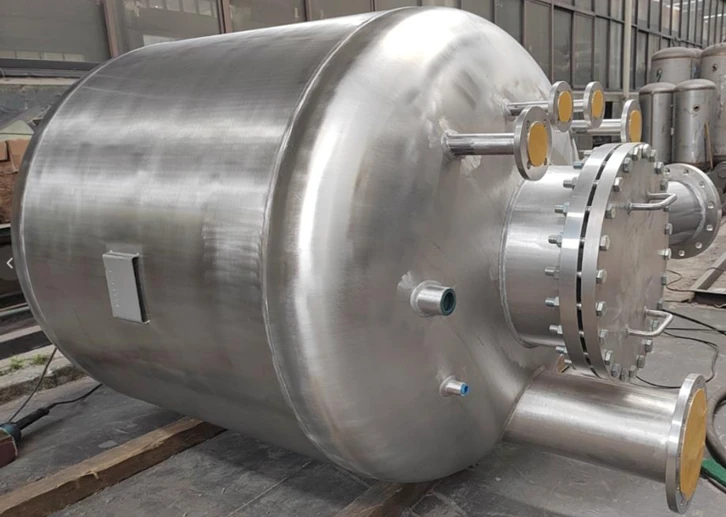

Industrial liquids
Selected compatible process liquids, assessed for corrosion, seals, air contact and site hazard requirements.
Explore the solutionHygienic systems
Product-contact finish, air treatment and cleaning provisions specified for the hygienic duty.
Explore the solutionIndustrial systems
A robust pressure-vessel system configured for compatible industrial transfer duties.
Explore the solutionGeneration 5 modular skid
Twin-vessel sequencing, factory assembly and integrated control in a transportable package.
Explore the solutionSugar mills & refineries
Reference experience in molasses, syrup and suitable magma transfer, including retrofit and new sugar factory projects.
Explore the solutionFood & beverage factories
Hygienic ingredient transfer for compatible products, with agreed cleanability, air quality and temperature control.
Explore the solutionPersonal care production
A project-specific assessment for selected creams and liquid formulations where air contact and product integrity allow.
Explore the solutionChemical processing
Industrial configurations selected around material compatibility, operating duty and process safety.
Explore the solutionTHE GENERATION 5 PRINCIPLE
Two vessels.
One coordinated process.
Follow the alternating cycle. Compressed air moves the liquid; the PLC manages filling, isolation, discharge and venting.
01
Fill & transfer
Vessel A receives product while vessel B transfers to the receiver. Upstream and downstream permissives govern the cycle.
02
Isolate & prepare
The full vessel is isolated before pressurization. The empty vessel vents through the specified arrangement before refilling.
03
Change over & transfer
The PLC exchanges the roles of the vessels. Vessel A transfers while vessel B fills, subject to the agreed permissives.
04
Vent & reverse
The emptied vessel A vents while vessel B prepares to transfer. The cycle repeats; actual timing depends on the product, route and available air.
Arrives integrated.
Starts with a clear plan.

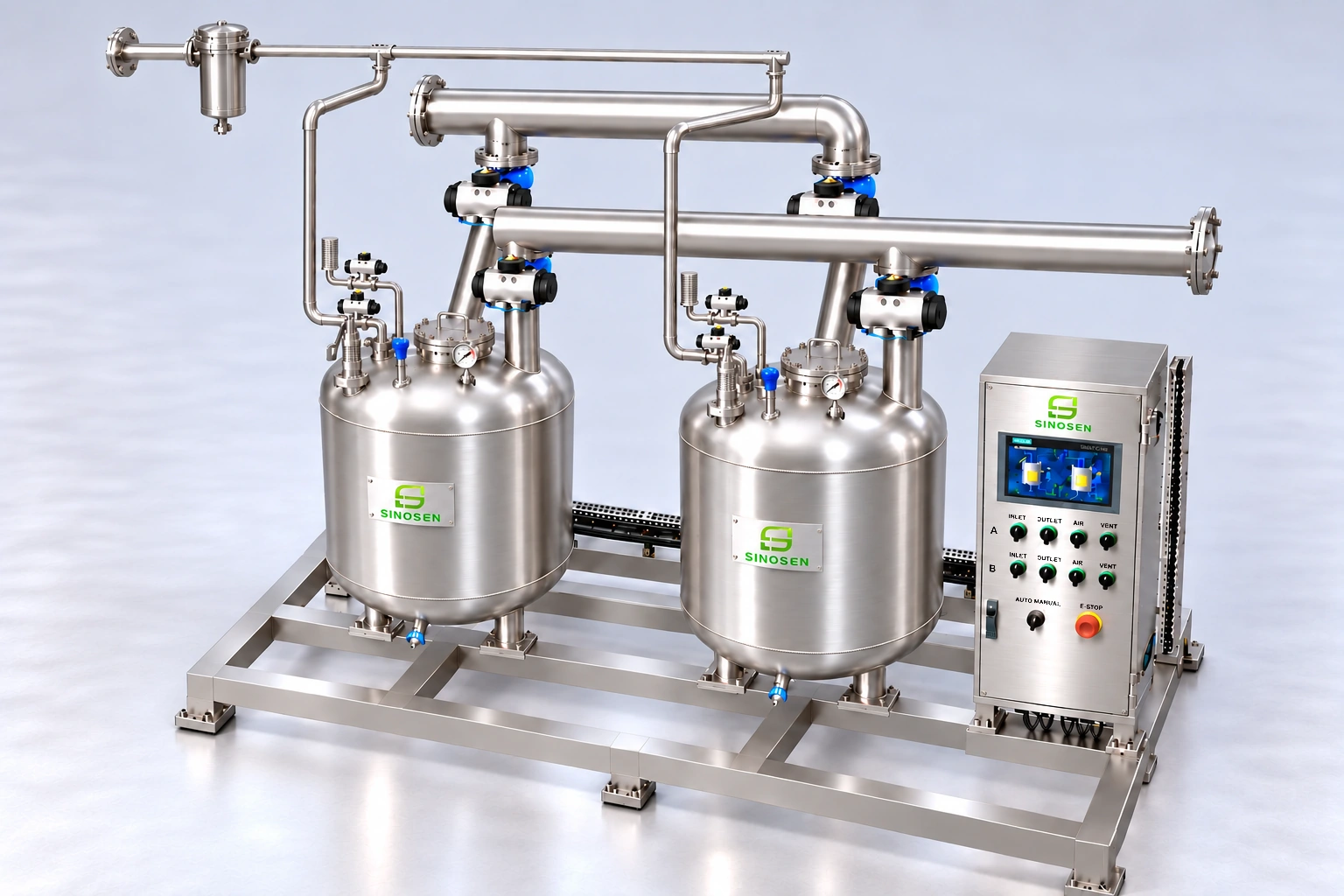

The Generation 5 skid brings vessels, control cabinet, instruments, valves and pipework together before dispatch. Factory testing and defined site interfaces shorten the route from delivery to production.
Factory-tested control logic
The sequence and agreed interfaces are checked before dispatch. Defined site connections and remote support simplify start-up.
Built-in operating flexibility
A suitable A/B arrangement can continue at reduced capacity with one vessel isolated. Level and time modes support an agreed fallback strategy.
SINOSEN PROJECT EXPERIENCE
Process experience.
Visible in the details.

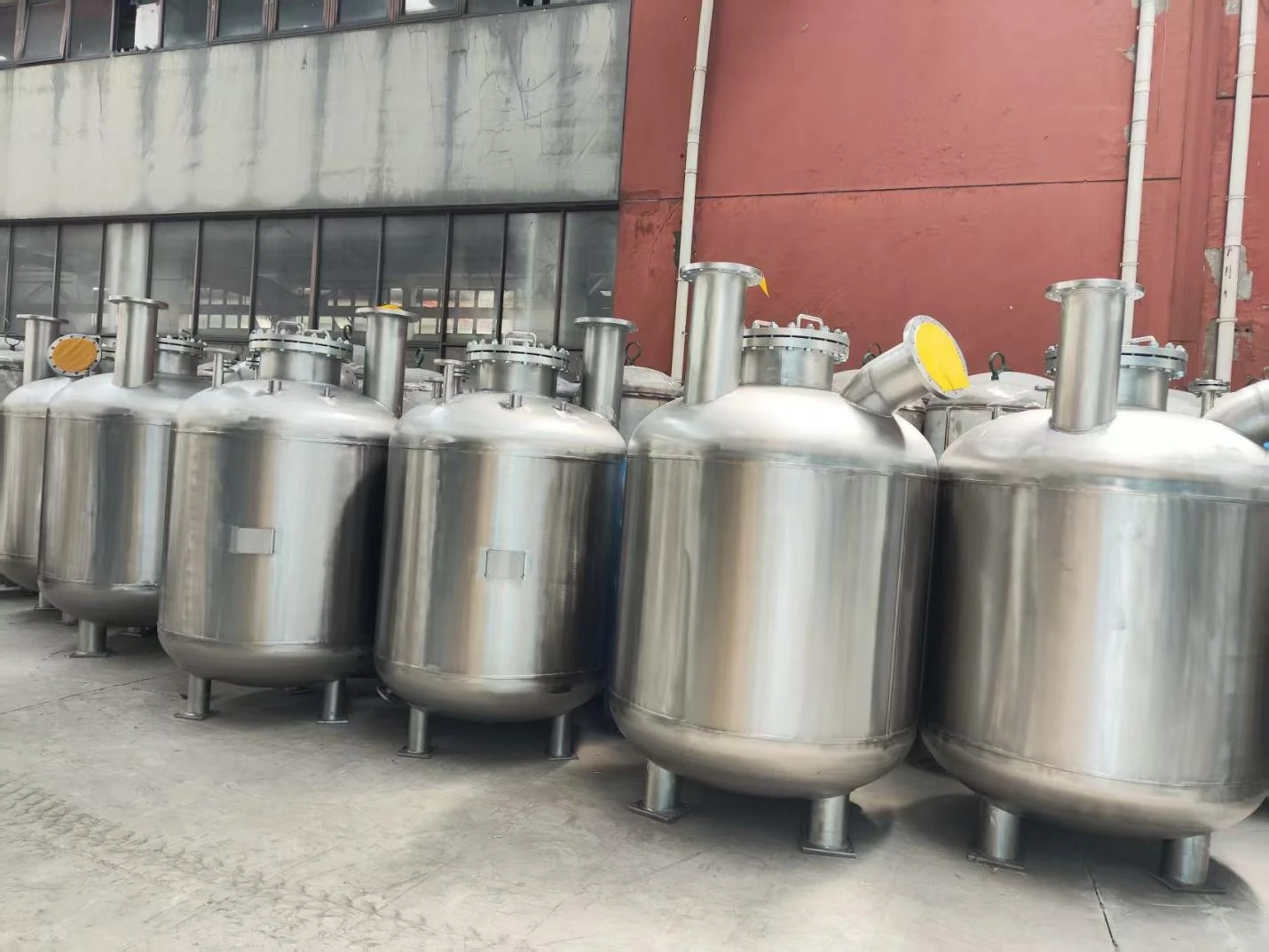

A reference register spanning sugar-processing projects in China, Indonesia and Myanmar, supported by original manufacturing and site photographs.
2015–2026Years covered by the main supplied reference register
42Project entries in that register
3Countries represented
Technical questions, answered
Is this an air-operated diaphragm pump?
No. SINOSEN uses a pressure-vessel transfer system. Compressed air acts on the liquid in the vessel; an automated valve sequence controls filling and discharge. It is also different from pneumatic conveying of dry powders.
Does “modular” mean no work is needed on site?
The skid is preassembled and factory-tested to reduce site assembly and tuning. The site still provides the foundation, product pipes, power, compressed air, vent arrangement and agreed control interfaces. Local checks and commissioning acceptance remain necessary.
Can it replace every gear or rotary lobe pump?
Replacement is application-specific. We check viscosity at operating temperature, solids, air compatibility, flow stability, pressure drop, hygiene and total compressed-air cost. Metering duties, oxygen-sensitive products and hazardous fluids need separate review.
Is the system maintenance-free?
It removes the rotating pump element and its shaft-seal maintenance. Valves, seats, instruments, filters, pressure protection and the vessel still require planned inspection and service.
THE SINOSEN KNOWLEDGE CENTRE
Practical knowledge.
Better project decisions.
50 engineering guides covering the questions that matter before you buy.
Gear Pump Replacement: When to Consider Pneumatic Transfer
Assess a pneumatic alternative to a gear pump using seal history, flow duty, air compatibility, installation scope and operating cost.
Read the guideMolasses Pump Replacement: Viscosity, Brix & Transfer Design
Evaluate a molasses gear or rotary pump alternative with minimum-temperature viscosity, Brix, filling time, route losses and air demand.
Read the guideGear Pump vs Pneumatic System: Total Cost of Replacement
Compare gear or rotary lobe pump replacement costs using the same duty, installed scope, energy basis, service records and project life.
Read the guideSTART WITH THE DUTY
Your material. Your route.
Your transfer system.
Share your process conditions. SINOSEN will help define the vessel arrangement, controls and site interfaces.
